Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

105Ah Lifepo4 Lithium Battery

72V Lithium Ion Battery Pack

48V/51.2V Electric Golf Cart Battery

Lieu d'origine:

Hunan, Chine

Nom de marque:

PINSHENG ENERGY

Numéro de modèle:

PE-W22112202

Nous contacter
Demandez un devis
Détails du produit
Taille de la batterie:
18650
Type de batterie:
Lifepo4/batterie au lithium
Tension:
48 V/51.2 V
Bms:
BMS intelligent
Capacité:
105Ah ou adapté aux besoins du client
Matériau d'anode:
NCM
Taux de charge:
1C
Taux de décharge:
2C
Énergie électrique:
5 000 Wh
Tension nominale:
51.2v
Capacité nominale:
105Ah
Énergie de la batterie:
5376Wh
Résistance interne:
≤ 8mΩ
Vie de vélo:
≥6000 cycles 80% DOD
Autodéfense:
<3>
Conditions de paiement et d'expédition
Quantité de commande min
2
Prix
$439-485
Description du produit
Custom LiFePO4 Lithium Ion Battery Pack
72V 105Ah Electric Golf Cart Battery
Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 0 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 1 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 2
Key Specifications
Electrical Characteristics Model Number PE-101
Nominal voltage 51.2V
Nominal capacity 105Ah
Battery energy 5376Wh
Internal resistance ≤ 8mΩ
Cycle life ≥6000 cycles (80% DOD)
Self discharge per month <3%
Charging Specifications
Charge cut off voltage 58.4V
Charge mode CC/CV (constant current/constant voltage)
Standard charge current 20A
Max charge current 50A
Discharge Specifications
Discharge cut off voltage 40V
Continuous discharge current 200A
Environmental Specifications
Charge temperature 0℃ to 45℃ (32F to 113F) @60±25% RH
Discharge temperature -5℃ to 60℃ @60±25% RH
Storage temperature 0℃ to 40℃ (32F to 104F) @60±25% RH
Mechanical Specifications
Case Metal case

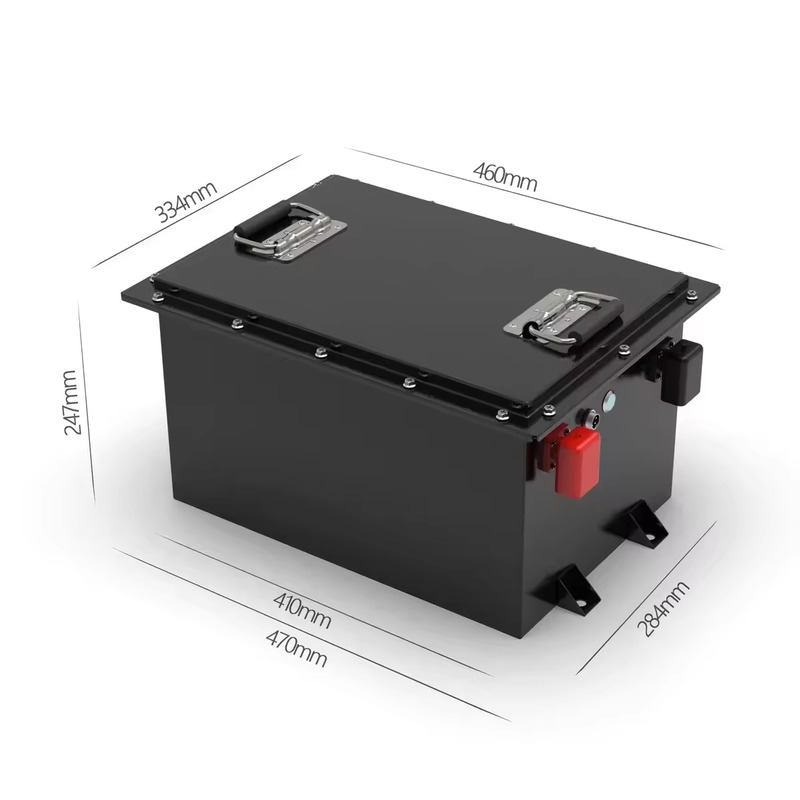

Dimension 470×334×247mm (L×W×H)
Terminal M10
Weight 44.60kg

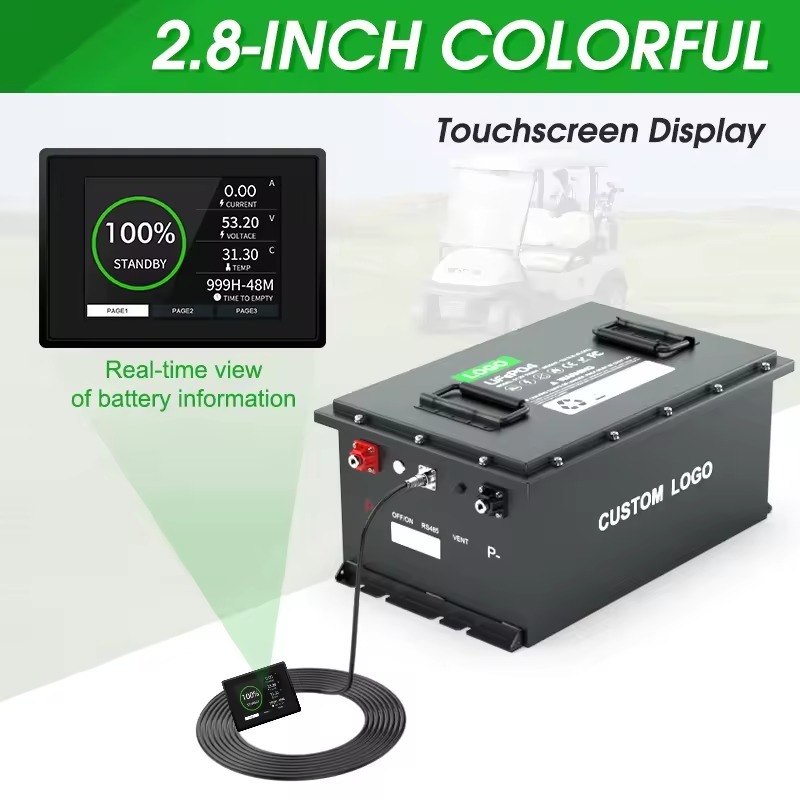

Function Custom LCD, App BT
Color Black

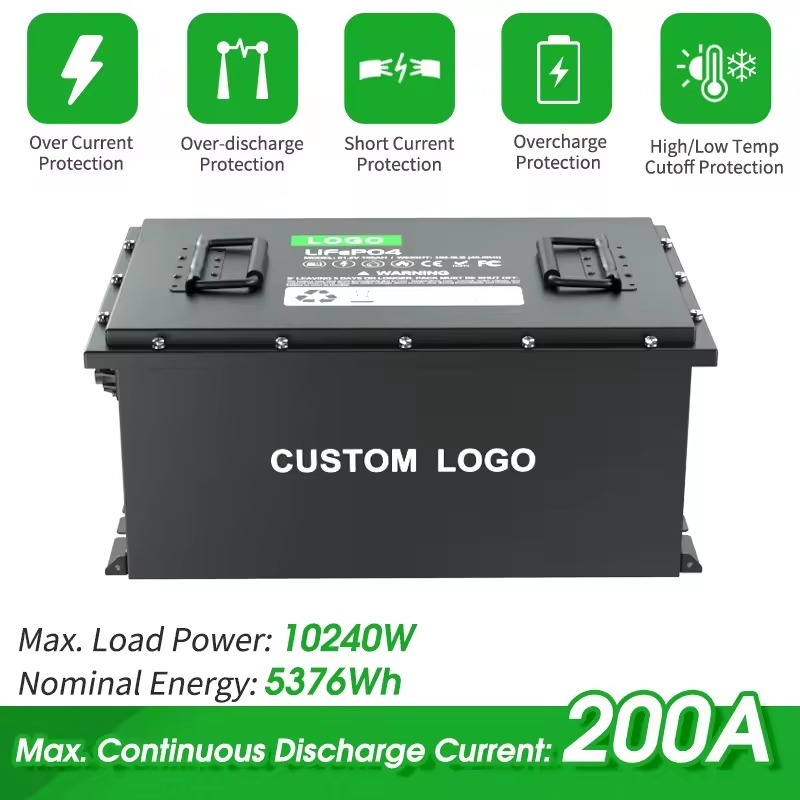

BMS Protection Features
  • Over-charge protection
  • Over-discharge protection
  • Over-current protection
  • Short circuit protection
  • Over-temperature protection
  • Balance functions
Certifications
  • CE
  • MSDS
  • UN38.3
Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 3 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 4 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 5
About Pinsheng Energy

Pinsheng Energy is a High-Tech Enterprise with R&D located in Changsha City, Hunan Province, near Guangzhou. With a 4,000 square meter workshop and 121 employees, we specialize in developing and producing lithium batteries and battery system integration.

After years of development and research, we have established a complete industry chain from research and production to sales. Our lithium batteries feature longer cycle life, higher security, greater reliability, and superior energy density.

Our products are widely used in energy storage systems (off-grid wind & solar energy storage, telecommunication systems, UPS) and power systems (electric motorcycles, bikes, scooters, tricycles, golf carts, forklifts, and electric vehicles).

Pinsheng Energy maintains a strict quality guarantee system to ensure high-quality products and has earned a strong reputation both in China and abroad. We prioritize customer needs and continuously improve our product quality and services, dedicated to becoming a top OEM & ODM lithium battery manufacturer worldwide.
